Load capacity
120 kg
Max Speed
30 km/h
Battery Autonomy
5 hrs

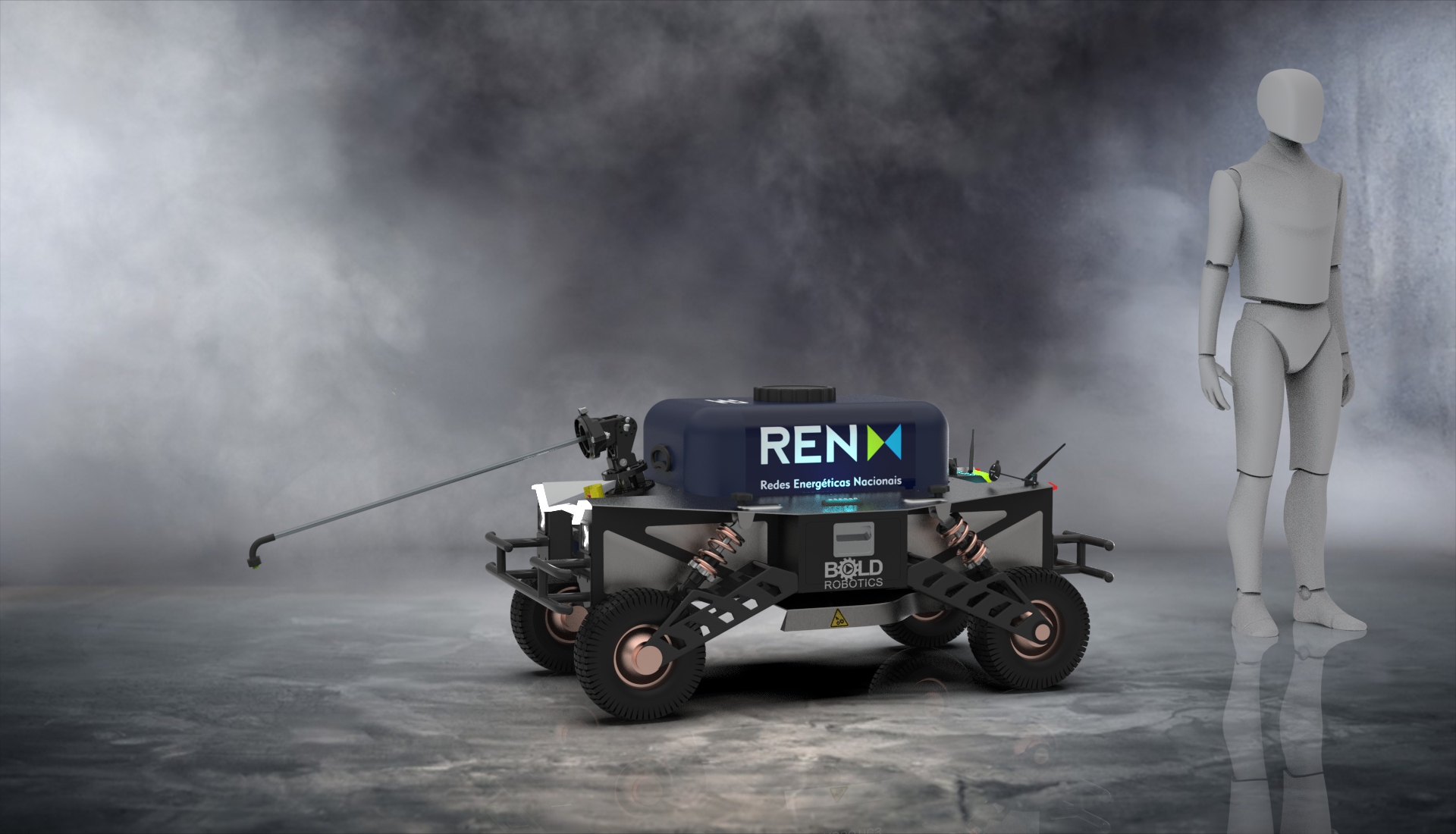

Fully Electric, remotely or autonomously operated UGV for light tasks
Fully Electric, remotely or autonomously operated UGV for light tasks
KEY FEATURES
REMOVABLE PORTABLE BATTERY
Removable portable Li-Ion battery (36V, 6.4 kWh). Battery weight is 15kg. Custom capacities and sizes may be available upon request.
ONBOARD SENSORS AND PROCESSORS
Powered by an onboard computer, Intel i7, 32 Gb RAM, Nvidia GeForce RTX 5060 graphics for superior performance. Embedded sensors for perception include a Livox HAP 3D LiDAR and Zed 2i stereo depth camera. Custom configurations are available upon request.
MULTIPLE OPERATION MODES
The Shadow platform offers multiple operation modes: radio-controlled, teleoperated, and fully autonomous. It includes a dedicated radio controller with a rugged tablet and joystick for on-site operation. Additionally, the system can be remotely operated through our dedicated web platform, enabling teleoperation or autonomous control for hazardous or challenging environments.
RUGGEDNESS
Shadows aluminum frame and body are engineered to endure harsh conditions with an IP65 rating, the Shadow features independent suspension and drive on all four wheels. Both suspension stiffness and ground clearance are manually adjustable, with ground clearance ranging from 50 to 250 mm. In addition to electromagnetic brakes on all four wheels, the Shadow is equipped with disk brakes on the rear wheels for enhanced stopping power.
TECH SPECS

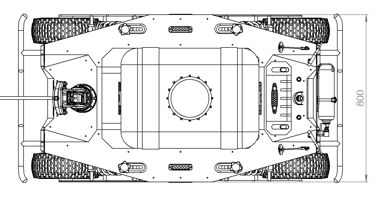

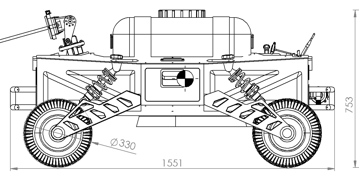

DIMENSIONS
SIZE
1600 x 800 x 700 mm
WEIGHT (EXCL. BATTERY)
94 kg
BATTERY WEIGHT
16 kg
MAX PAYLOAD
120 kg
GROUND CLEARANCE
Variable from 50 to 250 mm
PERFORMANCE
MAX SPEED
30 km/h
BATTERY AUTONOMY
5 hrs
OPERATION MODES
Radio-control, Teleoperated, Autonomous
EMBEDDED SENSORS
3D LiDAR, RGB-D camera, GNSS RTK
POWER
36 V
